Flip

Definition Of Flip

Flip is a transformation in which a plane figure is flipped or reflected across a line, creating a mirror image of the original figure.

More About Flip

A flip is also called a reflection.
The line across which the figure is reflected is called the line of reflection or axis of reflection.
After a figure is flipped or reflected, the distance between the line of reflection and each point on the original figure is the same as the distance between the line of reflection and the corresponding point on the mirror image

Video Examples: Dividing fractions - why does Keep Change Flip work?


Example of Flip

The figure below shows a flip or reflection of a parallelogram across the vertical line.

example of  Flip

Solved Example on Flip

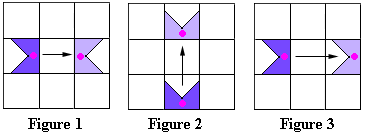

Ques: Which of these shows a flip?

 example of Flip

Choices:

A. Figure 1
B. Figure 2
C. Figure 3
D. None of the above
Correct Answer: A

Solution:

Step 1: A reflection turns a plane figure over a line of reflection. The reflected figure
is the mirror image of the original figure.
Step 2: So, here, only Figure 1 shows a flip.
